RX8 tuning information fundraising campaign

Description

RX8 Stock ECU Tuning – Fundraising Campaign

Simple explanation (read this first)!

This is a fundraising campaign to release everything needed to tune the stock RX8 ECU safely and correctly, without buying a standalone ECU.

If the goal is met, everyone gets access to the full information.
If the goal is not met by January 1st, 2027, everyone gets an automatic full refund.

What this gives you

• Tune the stock ECU for: naturally aspirated or turbo RX8s; stock or modified engines, with standalone-like flexibility and insight
• No guessing, no black magic, no broken engines, no incomplete, misleading or outright wrong table names
• Many more features and protections than stock software
• No $2000+ standalone ECU required
• Uses existing tools (MazdaEdit or free open-source software)

What you receive

• A base tune for NA or turbo setups
• Clear explanations of what the ECU tables actually do
• Ready-to-use files for MazdaEdit
• Compatibility with free tools (RomRaider + RX8Man)

Safety first

The offered software has built-in engine protections prevent damage caused by overheating, too much boost, lean fuel mixtures. When something unsafe happens, the ECU reduces power automatically instead of letting the engine destroy itself; in comparison with the OEM approach which does nothing at all in these cases

Quality of life

Special care has been given to delete any probability of the infamous cold engine flooding issue. With the gained knowledge, the overly-rich fueling present at cold startup has been deleted, and now the car can be shut down cold as many times in a row as you wish without any worry.

Another common gripe is with idle control, with most cars tending not to hold an idle(stalling) until it painfully re-learns idling; this behavior has been fixed with the car idling 50-100 RPM higher instead of… 300 RPM lower or outright stall.

Who this is for

• Mazda RX8 Series 1 (2003–2008) manual transmission only
• Any market: US / EU / UK / AU / NZ / JP; left-hand or right-hand drive

Who this is NOT for

• Series 2 RX8 or automatic transmission of any year(no support can be offered)

How funding works

• Goal: $50,000 within one year
• Deadline: January 1st, 2027
• If the goal is not reached: automatic refund, no action required
• Progress is updated monthly

You can pledge any amount by adding multiple quantities of this item to the cart.

If the goal is met, the RX8 community gains permanent access to stock ECU tuning knowledge that does not exist anywhere else today.

---

Technical details (advanced users)

Scope of reverse engineering

Approximately 95% of the factory ECU operating software has been reverse engineered and understood under all driving conditions.

Ignition timing fully mapped and controllable for:

• Cranking
• Idle
• Normal driving
• Knock control
• Fuel cut conditions
• Dwell time

Fueling fully mapped and controllable for:

• Cranking
• Idle
• Normal driving
• Complete fuel cut
• Single-rotor fuel cut
• Cold start enrichment (including catalyst warm-up)

Oil injection (OMP/MOP)

• Injection rates mapped and adjustable
• Behavior understood under varying operating conditions
• OMP limp mode can be disabled

Idle control

• Idle speed control by: engine temperature and catalyst condition

Cooling and DTC logic

• Cooling logic reverse engineered to be more comprehensive than currently known
• Correct DTC behavior: diagnostic trouble codes visible on scanners; specific error code turns on the check engine light or not

Immobilizer (important!)

• Immobilizer disable is technically possible, but it is too much of a security threat to the car in general
• It will NOT be released! Reason: it enables trivial theft by flashing the ECU. This decision is intentional and final.



Added control methods:

• Speed density: MAP (air pressure/boost) and IAT(air temperature)
• Alpha-N(throttle opening angle) control systems

Result: running a MAF is no longer needed(but still doable)! All other features retained.

Added safety systems (beyond factory behavior)

All thresholds are user-adjustable and clearly explained.

Overheating protection

• Engine power is reduced while overheating persists(if so desired)
• Power reduction amount and temperature thresholds are configurable
• Can also be used to limit power when the engine is cold (if so desired)

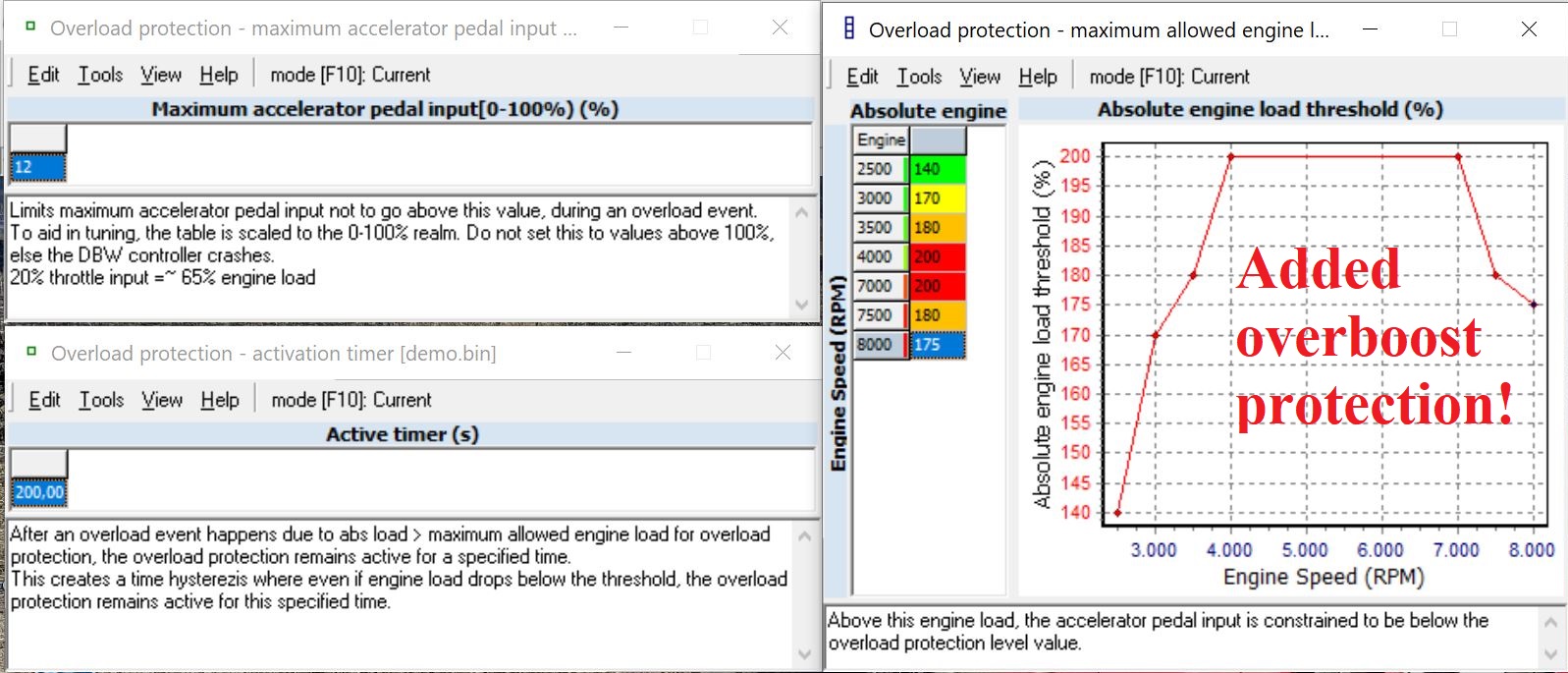

Overboost protection

• If boost exceeds limits, adjustable by RPM: engine power is cut for a defined time(seconds); long enough for turbo spool-down; and for it to be clearly noticeable to the driver

Lean AFR protection

• Implemented via full-time closed-loop fueling, active at all times
• ECU continuously adjusts fuel injection to maintain target AFR – stock operation only does this for low RPM, low load conditions(mostly fuel economy and emissions)
• AFR target defined by: one main table, one temperature-based enrichment table.
• In comparison, OEM approach: 3 main tables, 3 throttle based minimum enrichments, 5 temperature based enrichments, 2 barometric pressure thresholds, 10-15 temperature thresholds, catalyst condition overrides, too many others to count…

Power reduction method

• Power is limited by closing the electronic throttle plate – the same as Mazda already does in some cases
• Driver pedal input is overridden if conditions are unsafe – engine power is cut(if so desired)
• Throttle behavior is thus predictable, repeatable and fully configurable

Tuning workflow improvement

• Eliminates the need to guess among hundreds of poorly documented tables
• Removes ambiguity about which and when a table is active, and what they actually do

By comparison:

• Existing tools expose ~100 tables, less than 10% of the existing ones
• Nearly all tables are misnamed or incorrectly described
• Activation conditions are unknown

Tools and compatibility

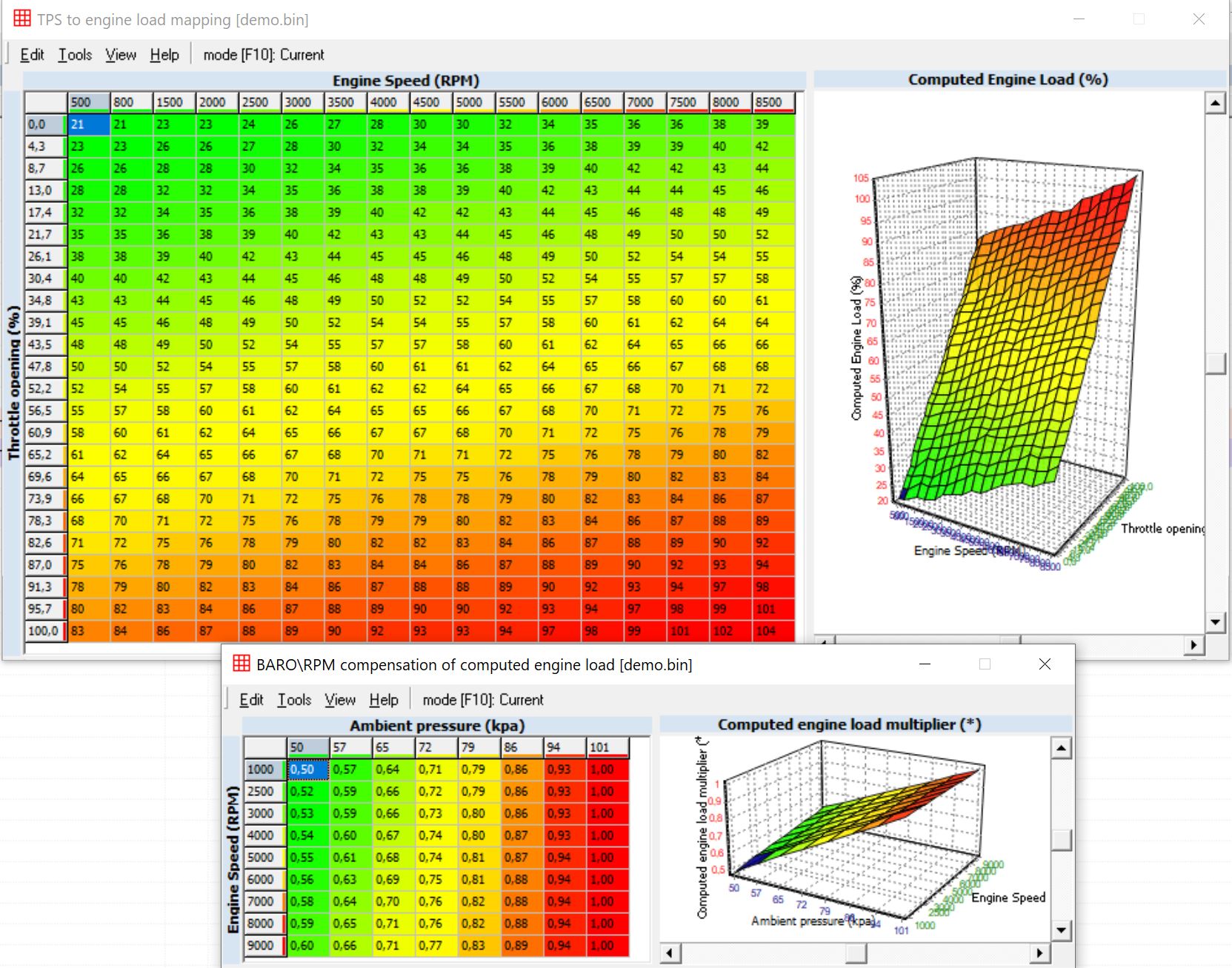

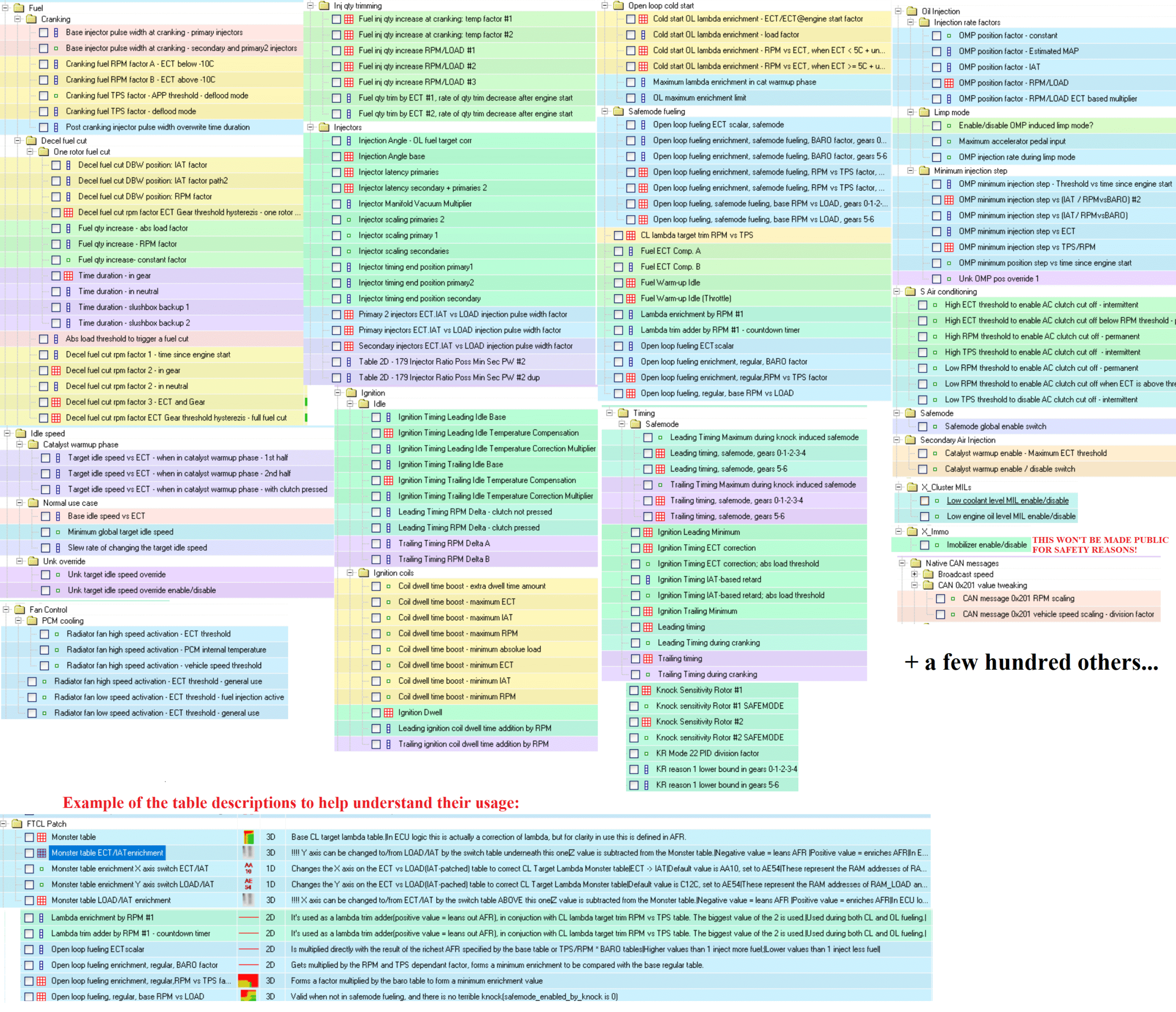

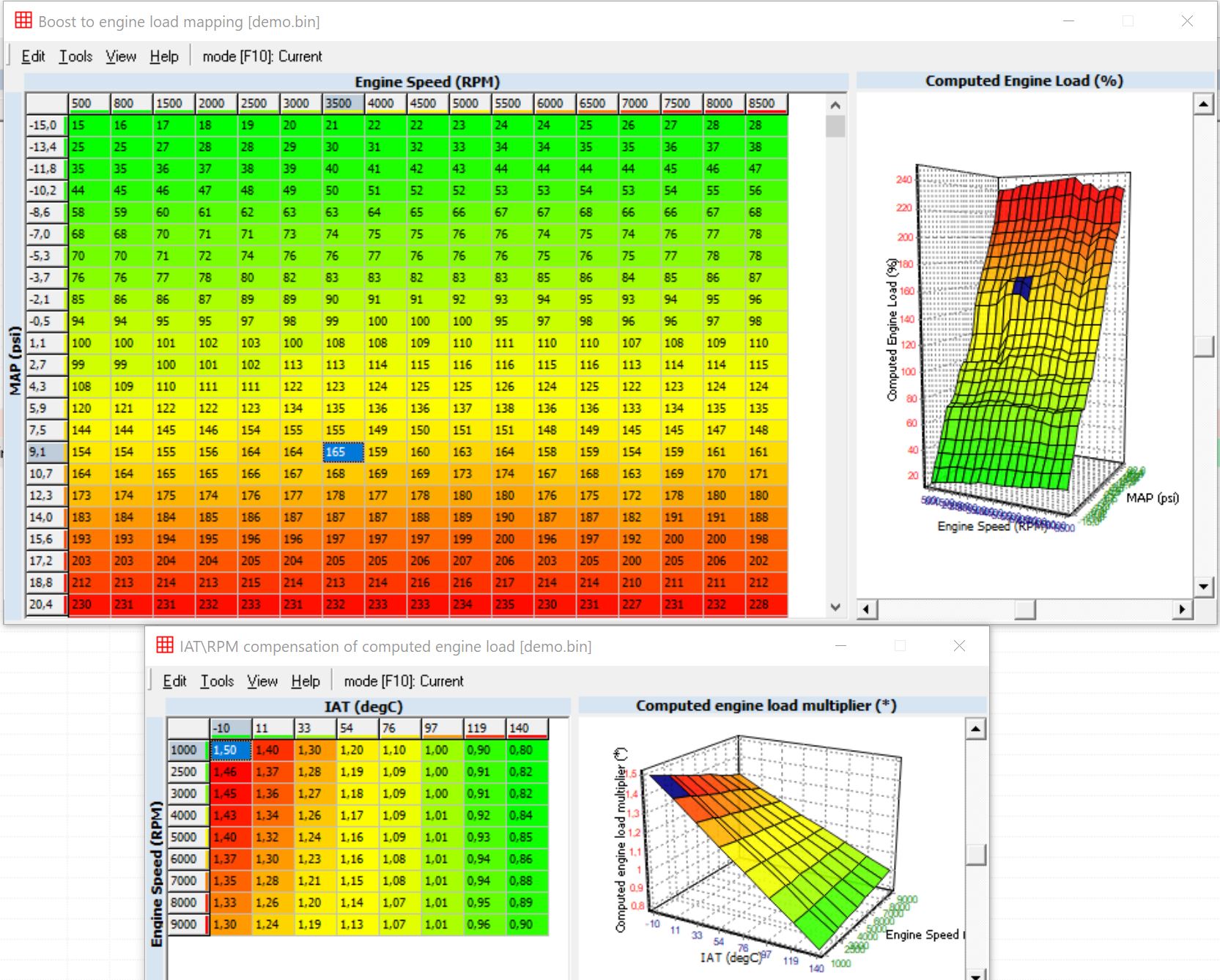

• MazdaEdit: XML definitions provided as seen below(images depict only a few tables)
• Open-source alternative:RomRaider (editing), RX8Man (flashing / reading)

If Versatune chooses to integrate this knowledge, they are free to do so. Given the large amount of future customers they might face, the probability of this is very high.

Existing published work – demonstrated reverse-engineering capability and tuning work:

• Full-time closed-loop fueling on stock ECU – how, exactly, this additional feature was implemented:
  https://www.rx8club.com/series-i-engine-tuning-forum-63/full-time-closed-loop-fuelling-stock-ecu-276077/
• Single-rotor fuel cut behavior – a subtle OEM level function that might, or not, have a negative impact on the engine:
  https://www.rx8club.com/series-i-engine-tuning-forum-63/1-rotor-fuel-cut-276508/
• Basic MazdaEdit tuning guide – how the ECU thinks:
  https://www.rx8club.com/series-i-engine-tuning-forum-63/basic-tuning-guide-mazdaedit-276041/
• Native CAN message reverse engineering – how the various computers on the car talk to each other:
  https://www.rx8club.com/series-i-engine-tuning-forum-63/mapping-reverse-engineering-native-can-messages-276101/

An example of the car starting cold and not going super-rich, the mode which frequently floods the engine if shut down cold:

Note the AFR staying close to 14.7: stoichiometric ratio. Not rich, not lean, 0 chances of flooding ever again!

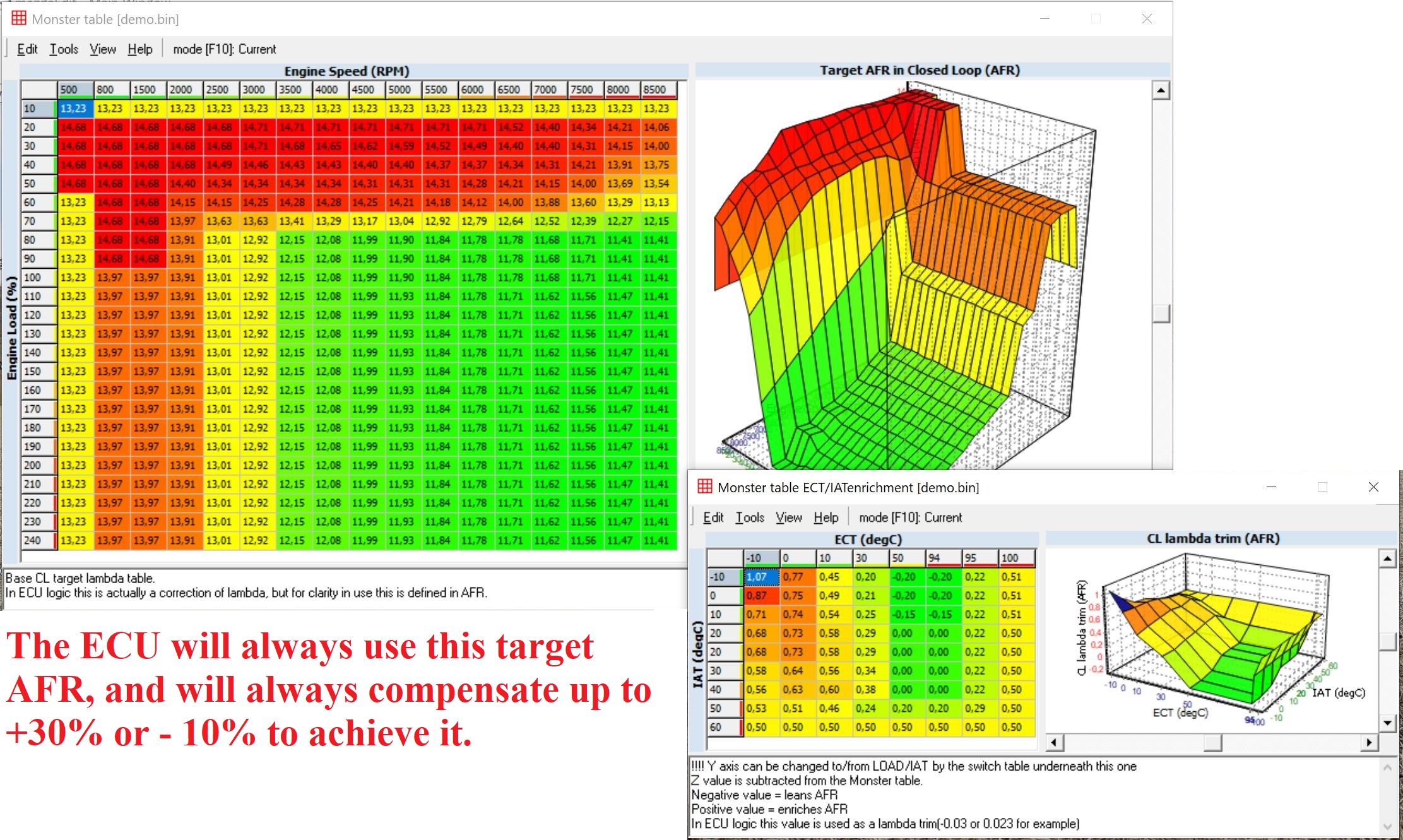

An example of the same car at the track, running the AFR targets shown above:

Final notes

This reflects the state of knowledge as of December 2025. The knowledge base on what the factory ECU already does can expand further over time, and there will be no cost. Further features might be added also, just like the ones that were added to protect the engine.

You are pledging what it is worth to you not to buy a standalone ECU, and to make this information permanently available to the RX8 community.

If funded, everyone wins.
If not, everyone gets their money back. The knowledge will remain private and will not be released later in any form.
